The Upper Spot Pro Kit - Amber is a complete upper-installation snowmobile lighting kit for 475 verified 2019-2027 Ski-Doo configurations on the shared Ski-Doo/Lynx platform. It shares the same upper bezels, mounting components, and fitment as the Upper Spot Pro Kit - Clear counterpart; only the light color changes.
Confirm fitment before ordering

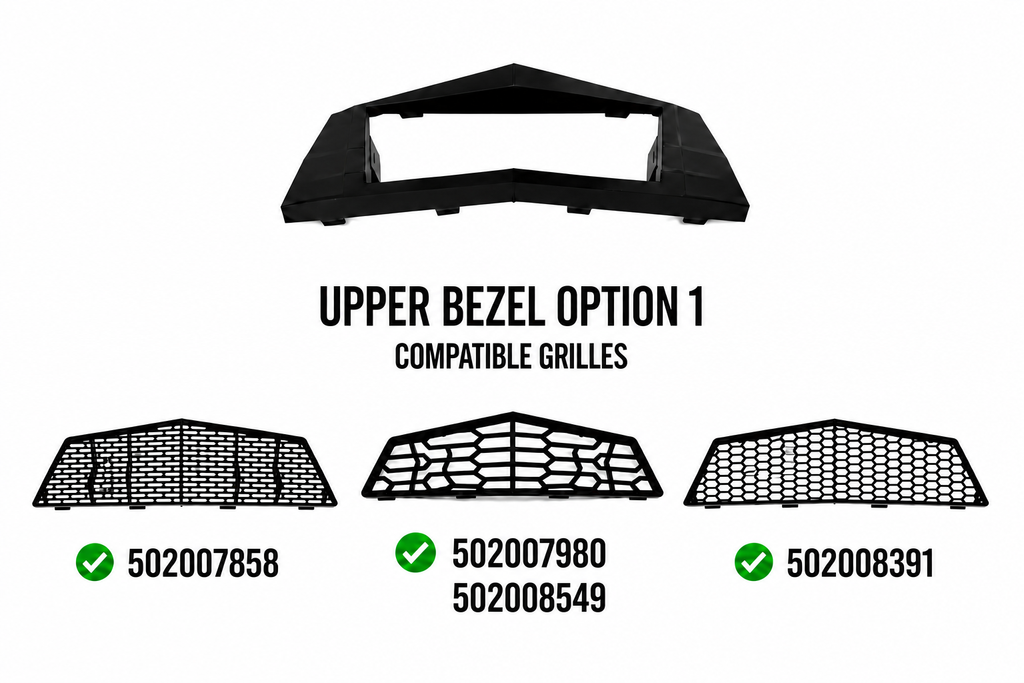

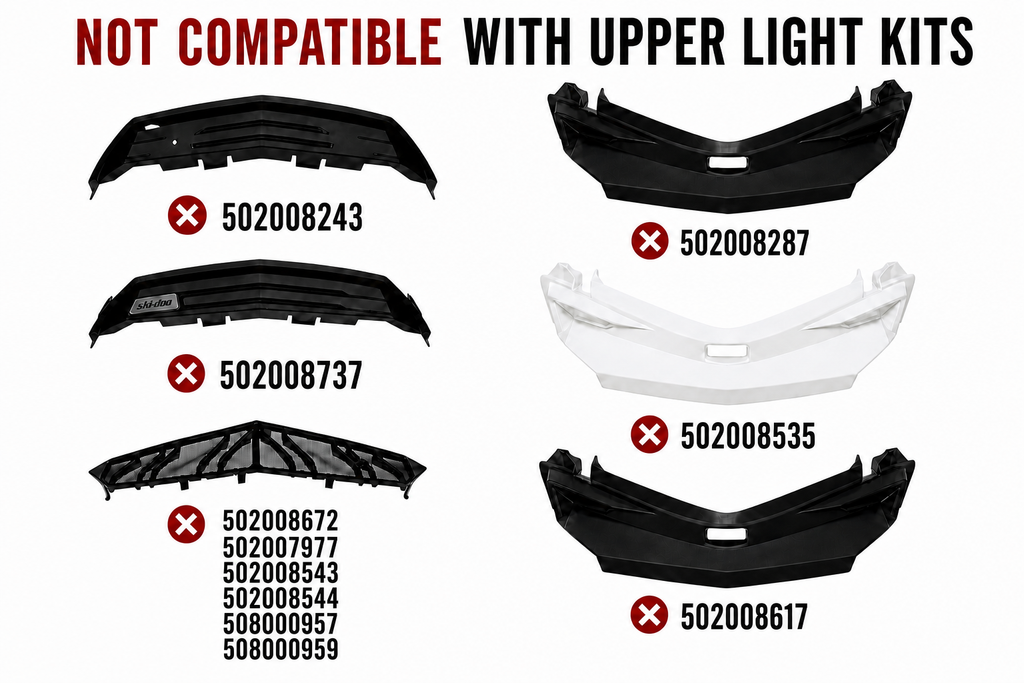

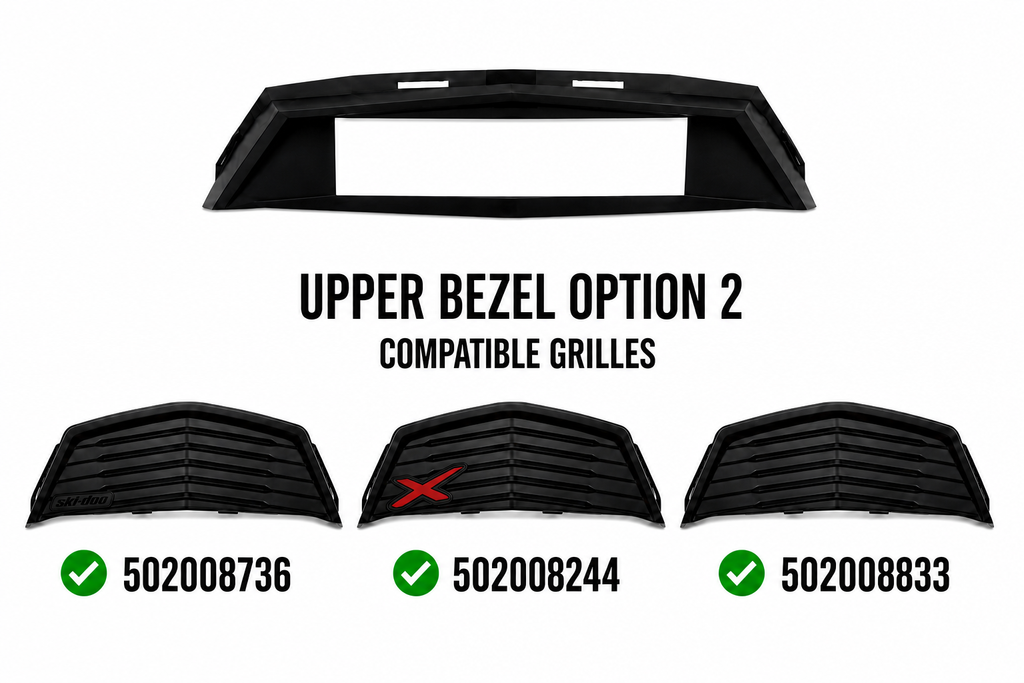

Use the fitment finder with your exact sled configuration or an exact upper OEM grille number. Bottom-pan numbers are not accepted because sleds sharing a bottom pan may use different hoods and upper grilles.
Kit configuration

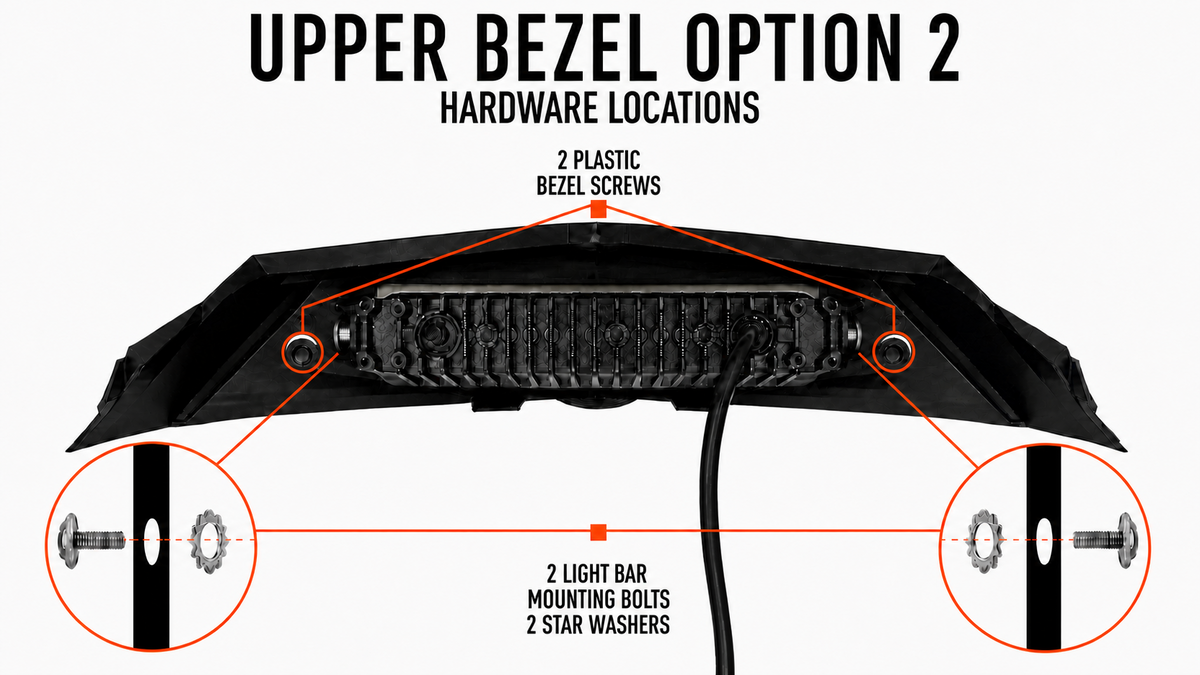

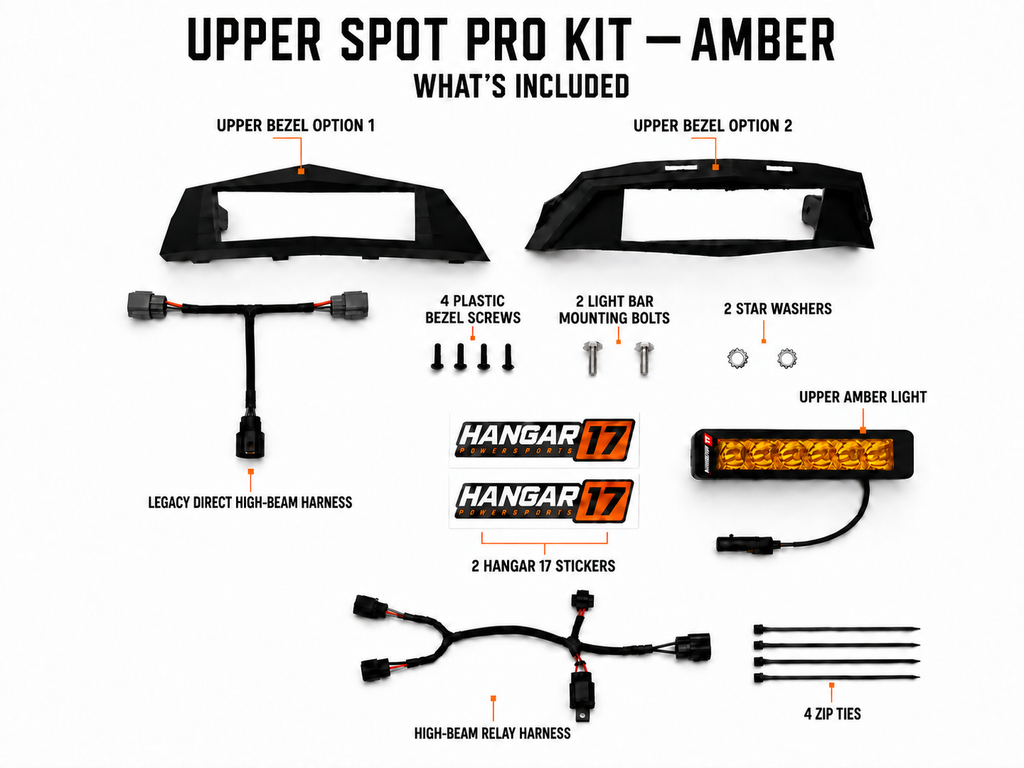

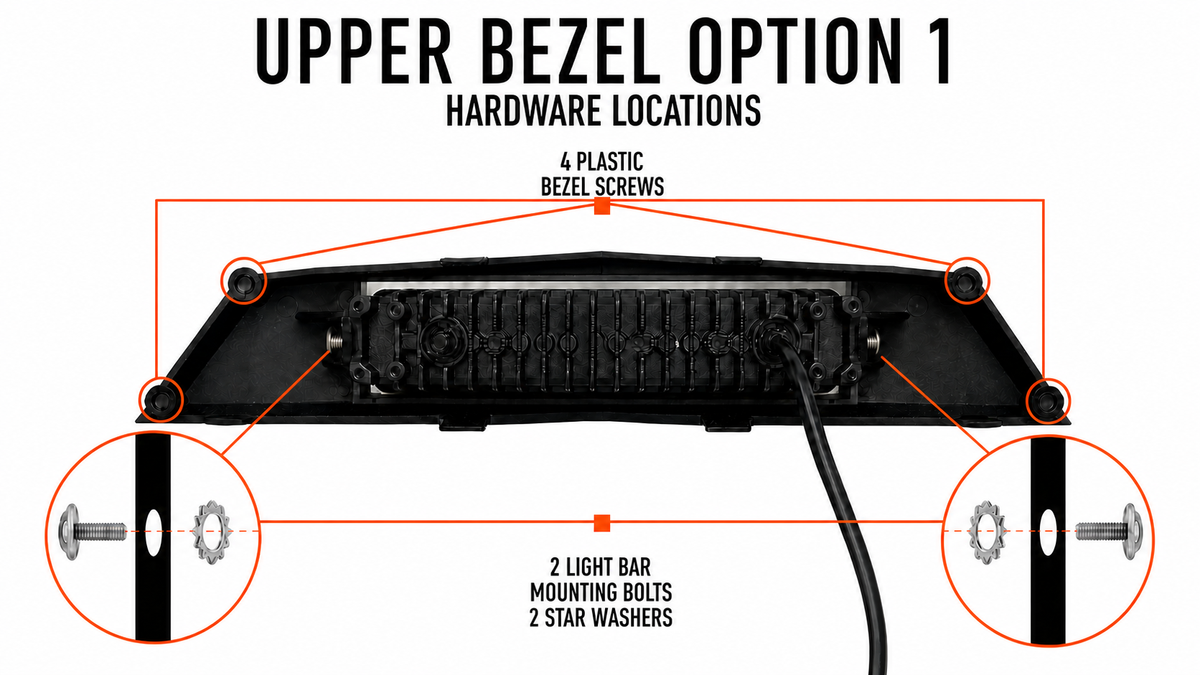

Includes one Amber Spot Pro light, both black upper-bezel options, both the Legacy Direct High-Beam Harness and the High-Beam Relay Harness, and the hardware required for supported upper fitment.

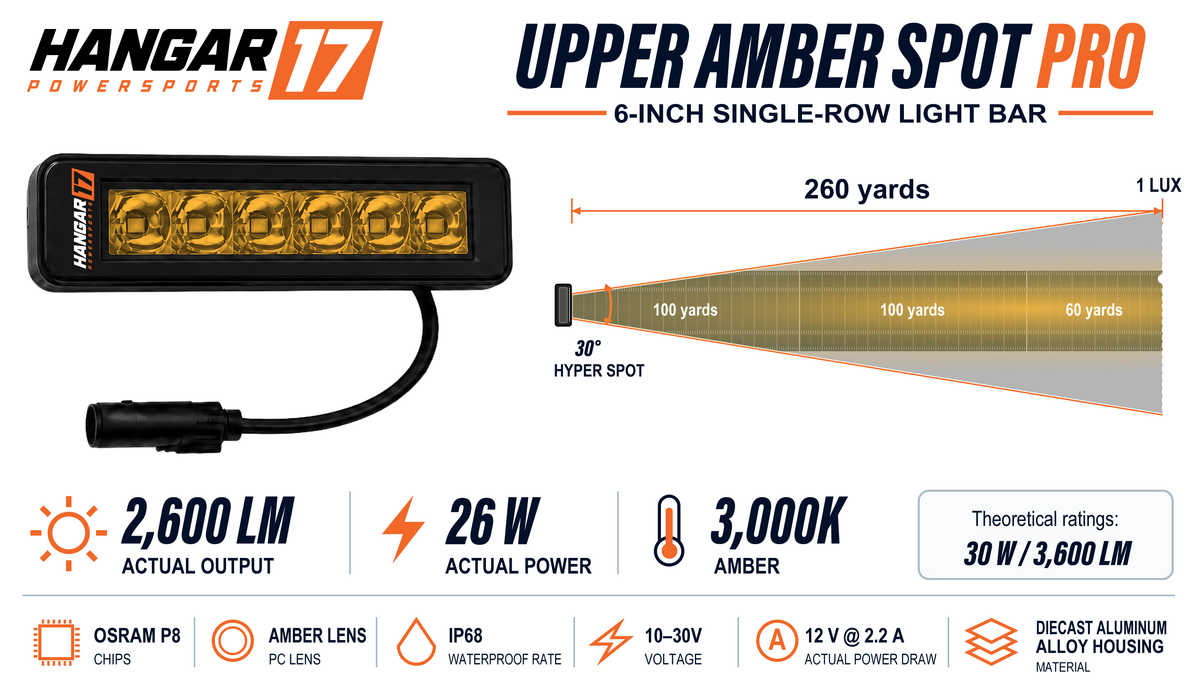

Light specifications
| Light format | 6-inch single row |
|---|---|
| Lens | Amber |
| Beam pattern | Spot beam / 30° Hyper Spot |
| Actual light output | 2,600 lm |
| Lighting distance | 238 m at 1 lux |
| Actual power | 26 W at 12 V |
| Current draw | 2.2 A at 12 V |
| Color temperature | 3,000 K amber |
| LED chips | OSRAM P8 |
| Theoretical power | 30 W |
| Theoretical light output | 3,600 lm |
| Waterproof rating | IP68 |
| Operating voltage | 10–30 V |
| Housing / lens material | Diecast aluminum alloy / polycarbonate (PC) lens |
Electrical installation

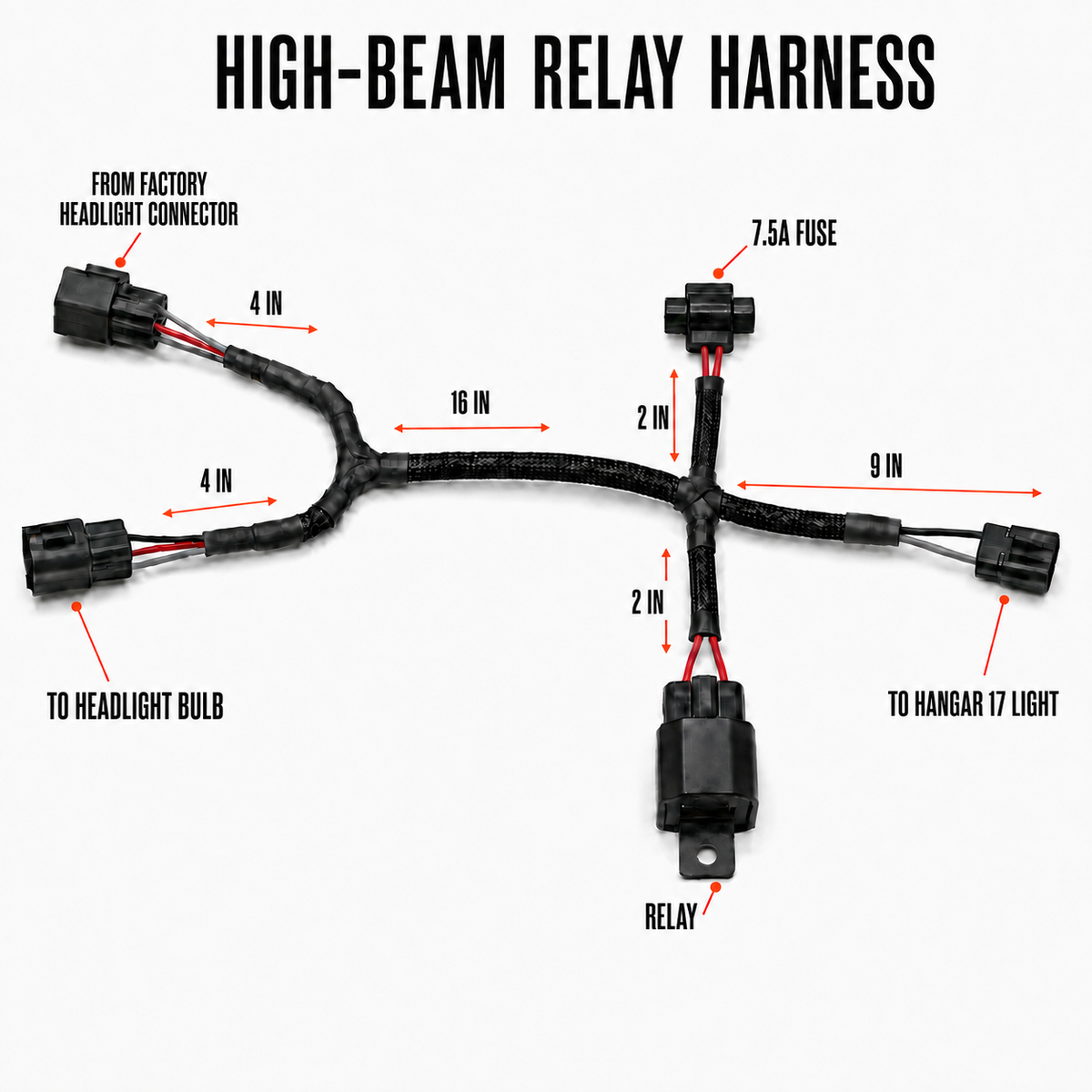

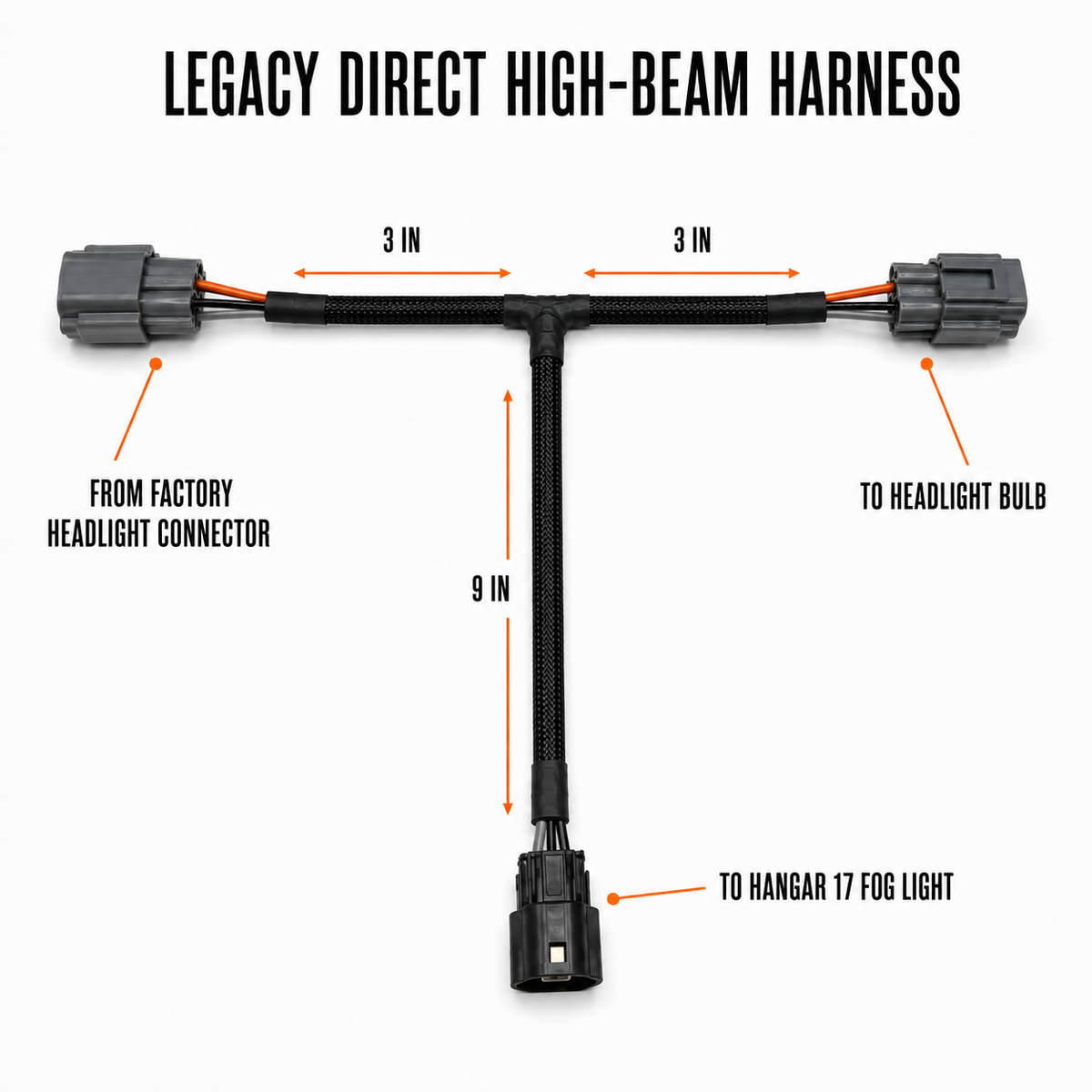

Both high-beam harness options are included. Use the Legacy Direct High-Beam Harness or High-Beam Relay Harness that matches your sled's factory connection. No wire cutting, splicing, crimping, soldering, or programming is required. Cut only where the approved instructions for your exact fitment require an opening.
Premium harness upgrade
The Super Harness is available separately as a premium upgrade for compatible installations.
Presale support
Payment is collected in full at checkout. Orders are estimated to ship approximately two months from the order date. Standard shipping is free to the 48 contiguous states; Alaska shipping is calculated at checkout. Eligible Spot Pro lights include a two-year limited warranty.
